FSD 150 LC

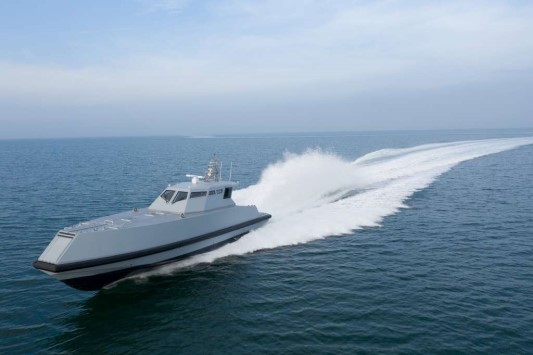

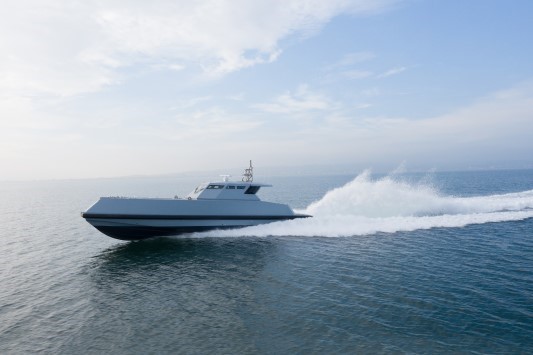

The FSD 150 LC is a 16,7 meter vessel weighing just over 22 tons. Powered by a pair of 1000-hp engines, she can cruise comfortably at over 48 knots at 1/3 load, with a 3-person crew and up to 20 operatives; the alternative twin 1200-hp MAN unit configuration achieves even higher speeds of 50 knots. Developed to sail in shallow waters or as a support unit on board larger ships, the FSD 150 LC features a surface propellers propulsion system, especially designed to facilitate beach landings. The boat can be fitted with a variety of different navigation equipment as per the customer’s requirements.

FSD 150 Combat Boat

Main size:
  • Overall length (standard ISO 8666):16.7 m / 54 ft. 9 in.
  • Hull lenght (standard ISO 8666): 16.3 m / 53 ft. 47 in.
  • Waterline lenght: 13.5 m / 44 ft. 29 in.
  • Maximun beam (including fenders): 4.33 m / 14 ft. 2 in.
  • Depth under the keel: 0.9 m / 2 ft. 11 in.
  • Displacement laden: 22 ton / 48,501 lbs.
  • Displacement unladen: 19.3 ton / 42.549 lbs.
  • Maximum number of person on board: 20 Ops + 3 Crew

Propulsion and speed:
Man 1000 V8 - D2868LE426
+ Top System TS75 Surface Drives
  • Maximum speed @ sea trial conditions: > 48 kn
  • Patrolling speed: > 37 kn

Range:
  • Patrolling speed @ 1/2 fuel load: > 350 nm

Technical data:
  • Hull type: 22° Deep V - 22˚ deadrise
  • Fuel tank capacity: 2800 lt. / 739 US gals.
  • Water tank capacity: 230 lt. / 60 US gals.
  • ClassificationRina FPV - Special Service, Combat Boat - Offshore Navigation
The top performance is estimated at the following conditions: Standard version displacement of the vessel (no hybrid modules): fully loaded clean hull and propellers, 25'C air temperature good sea and weather conditions. (25,5 ton / 56218 lbs.)
